Unique Advantages of Delta PD Pumps
- Self-priming—no external priming devices needed
- Can handle air/gas mixtures—also suitable for stripping
- Consistent flow regardless of system pressure changes
- Efficient with viscous liquids compared to centrifugal pumps
- Suitable for both small-volume, high-pressure, and large-volume applications
Palm Oil Pumps Supplier in Malaysia
Delta PD Pumps Pvt. Ltd. offers a range of specialized pumps designed for various stages of palm oil processing and transfer, ensuring efficient, contamination-free, and reliable handling of palm oil and its derivatives.
Applications: Loading / Unloading Inter-tank Transfer Export Pumps
Liquids: Refined Palm Oil, Fatty acid palm oil, Crude Palm oil, Vegetable Extracts
D2S Series Twin Screw Pump
- Application: Bulk transfer of palm oil and derivatives
- Design: Horizontal/vertical options, timing gear, inside/outside bearings, mechanical seals
| Key Features | Technical Data |
|---|---|
| Smooth, non-agitating flow prevents product shear | Capacity: 5–500 m³/hr |
| All-metal construction avoids contamination | Pressure: Up to 16 bar (standard), 50 bar (special) |
| Interchangeable liners for easy maintenance | Viscosity: Up to 100,000 cst, Temperature: Up to 350°C, Speed: Up to 3,000 rpm |

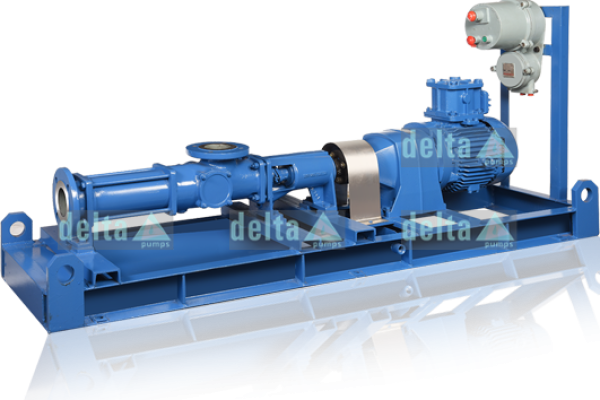

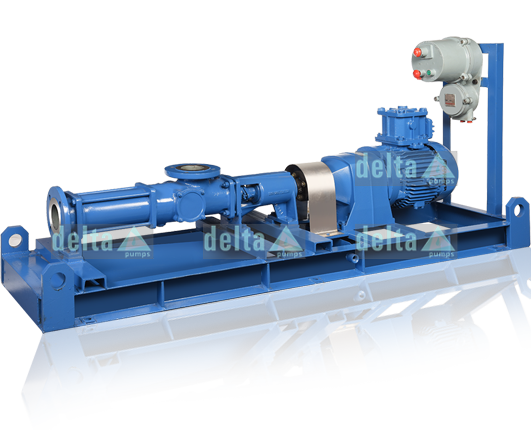

D1S Series Progressive Cavity Pump
- Application: Sewage, sludge, and effluent treatment in palm oil mills
- Design: Swivel joint for easy maintenance, available in vertical submerged configuration
| Key Features | Technical Data |
|---|---|
| Low-speed operation reduces wear | Capacity: 0.5–160 m³/hr, Pressure: Up to 24 bar, Viscosity: Up to 500,000 cst |
| Proven in effluent pond applications | Temperature: Up to 150°C, Speed: 30–500 rpm |
DSL Series Shuttle Block Pump
- Application: Filling/decanting road/lorry tankers, overhead tanks
- Design: Combines rotary and piston action, minimal maintenance
| Key Features | Technical Data |
|---|---|
| No stator replacement required | Capacity: 15–50 m³/hr, Pressure: Up to 6 bar, Viscosity: Up to 30,000 cst |
| Handles clean edible oil at high temperatures | Temperature: Up to 150°C, Speed: Up to 960 rpm |
DG Series External Gear Pump
- Application: Tank-to-tank transfer in palm oil refineries
- Design: Hardened, ground gears for quiet, low-pulsation operation; built-in safety valve
| Key Features | Technical Data |
|---|---|
| Rugged, low-maintenance | Capacity: 0.5–80 m³/hr, Pressure: Up to 16 bar, Viscosity: Up to 100,000 cst |
| Handles accidental discharge closure | Temperature: Up to 350°C, Speed: Up to 1,450 rpm |

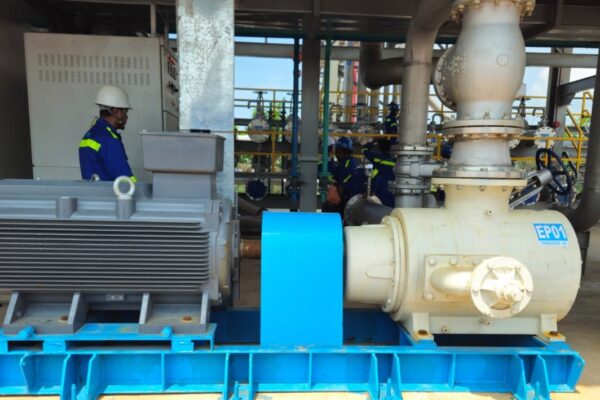

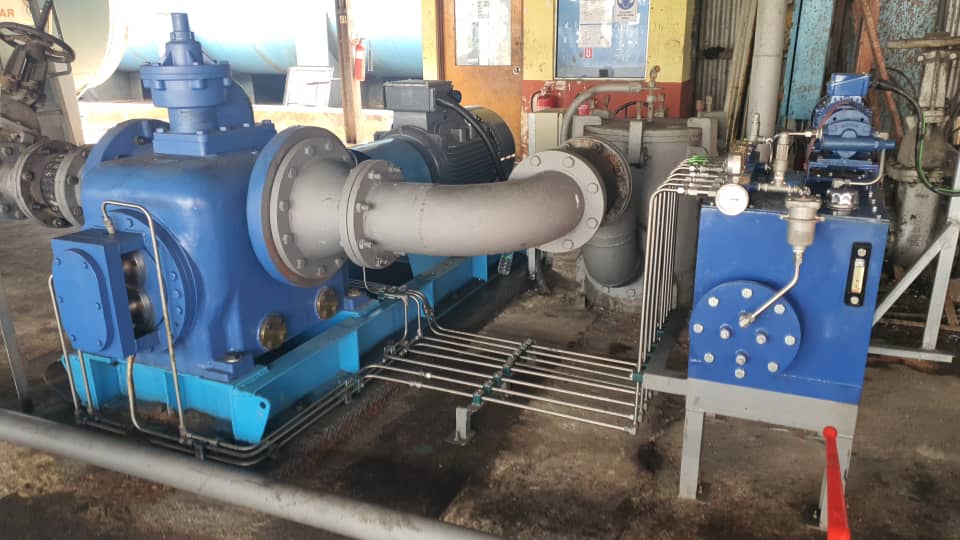

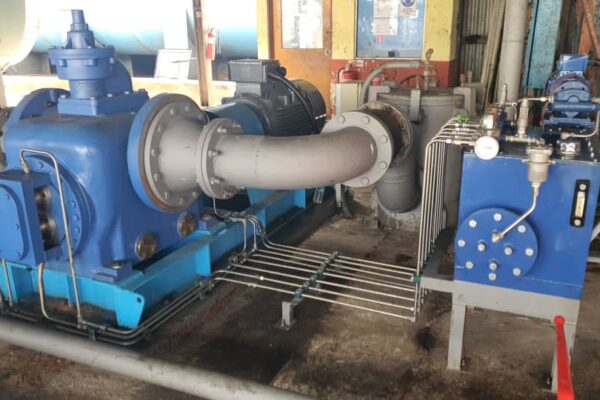

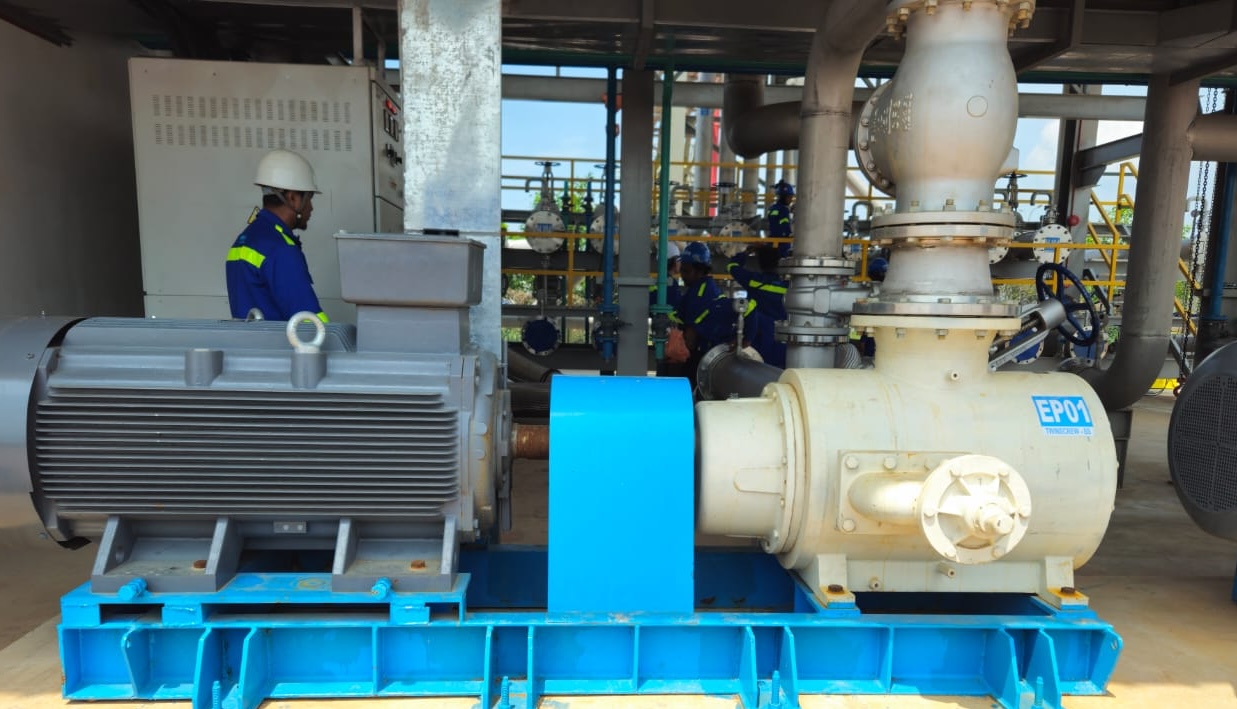

Twin Screw Pump for Palm Oil installation at site in Malaysia
